Product Description

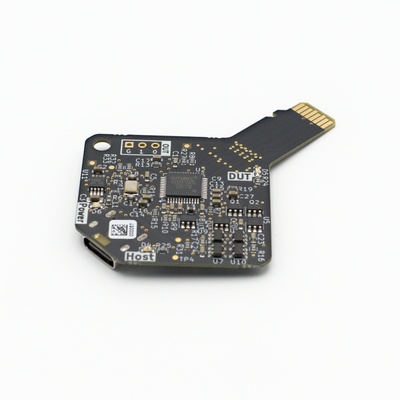

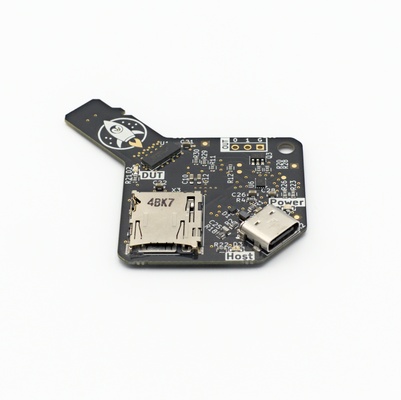

The USB-SD-Mux FAST is the successor to the USB-SD-Mux Classic. It has a USB-C connector and supports SD cards up to UHS-I (SDR104 / 104 MB/s).

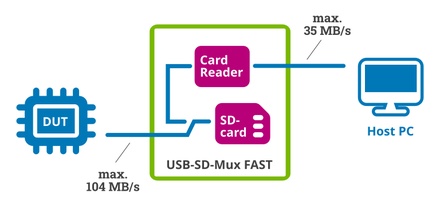

- max. 104 MB/s Dut <-> SD Card
- max. 35 MB/s SD Card <-> Host PC
The USB-SD-Mux is a tool to support the development of Embedded Linux devices.
The USB-SD-Mux switches a SD-Card between your Device Under Test (DUT) and a host PC. Therefore handling the SD-Card manually is no longer necessary. You can use the USB-SD-Mux for accessing the SD-Cards of your DUT remotely or integrate your boards into CI-Tests.
The USB-SD-Mux is connected by an USB 2.0-interface to a host computer. It will be recognized as a common card reader. For switching between the DUT and the host, the USB-SD-Mux can be controlled via software (available on Github ).
Further information are available on the product page.
Scope of delivery
- 1 USB-SD-Mux FAST
Product Information
| Product Type | Devices |
|---|---|
| Price (excl. tax) | €98.70 |
| Price (incl. tax) | €117.45 |
| Tax (19% VAT) | €18.75 |
| Availability | In stock |
| CE Compliant | Yes |
| Country of Origin | Germany |
| HS Code | 84719000 |
| Manufacturer | Linux Automation |
| Item Number | 00048 |
