Product Description
Optick is our prototype of a measurement system for measuring glass-to-glass latencies in systems for video processing. The idea for this came from the daily work of our parent company Pengutronix: During development on the Linux graphics stack, the latency from the camera to the screen (camera glass to screen glass) is an important factor.
Optick measures the time between turning on an LED in front of the DUT's camera and displaying the light on the DUT's screen. The measurements are carried out with a resolution of 21 ns and the accuracy of the crystal oscillator on the device. Optik is controlled via the LXA IOBus. The LXA IOBus uses CAN for communication and is therefore particularly robust in everyday use. A command line tool is available in the LXA IOBus server to control the Optick.
Further information are available on the product page.
Setup
The Optick is part of our LXA IOBus system .
To be used successfully you need to connect to a CAN-Bus with 12V power supply
and use our IOBus server .
Scope of delivery

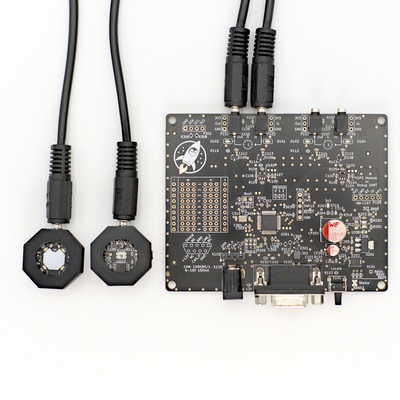

- 1x Optick Main Assembly

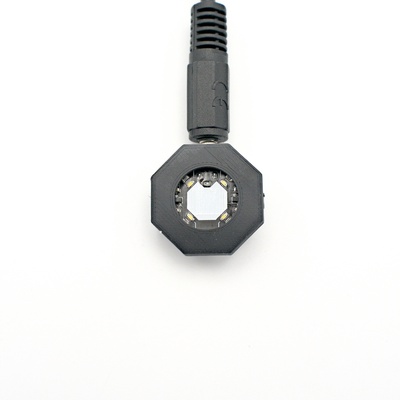

- 2x LED assembly including cables

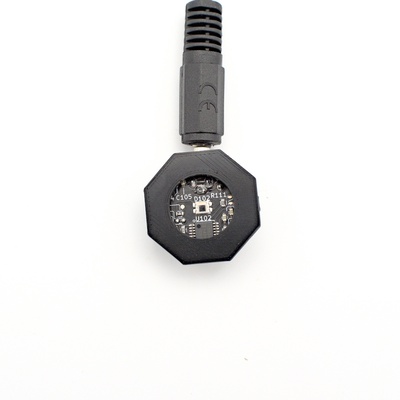

- 2x Sensor assembly including cables
Product Information
| Product Type | Devices |
|---|---|
| Price (excl. tax) | €149.00 |
| Price (incl. tax) | €177.31 |
| Tax (19% VAT) | €28.31 |
| Availability | In stock |
| CE Compliant | No |
| Country of Origin | Germany |
| HS Code | 85437090 |
| Manufacturer | Linux Automation |
| Item Number | 00043 |
