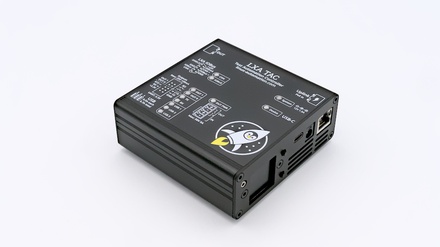

LXA TAC

€534.31
incl. 19% VAT plus shipping
In stock

Product Description

The LXA Test Automation Controller (TAC) controls a single device under test (DUT) during development and testing. It is aimed at DUTs running Embedded Linux, but can be used for a variety of embedded devices. The LXA TAC provides the most common interfaces needed to remotely control a DUT. Furthermore it can be extended using LXA IOBus devices.

The LXA TAC fits the following needs:

  • Interactive Development Remote control a DUT during bootloader, operating system or application development.
  • Testing and Quality Assurance Execute test suites for bootloader, operating system or application on real hardware.
  • Remote working and resource sharing With remote control over the DUT there is no need to have the DUT on your desk. Remote working and sharing of scarce prototypes is possible.

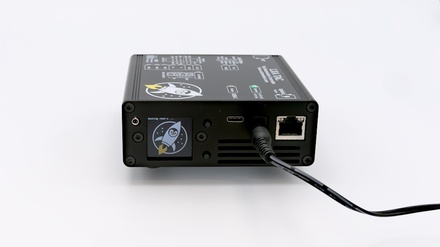

Infrastructure-facing Interfaces

  • Gigabit Ethernet with PoE (IEEE 802.3af) with internal Ethernet switch
  • DC input (if PoE is not used)
  • USB-C with USB 2.0 device port: Can be used as USB gadget (either facing infrastructure or DUT)
  • Serial debug console
  • OLED-display with button

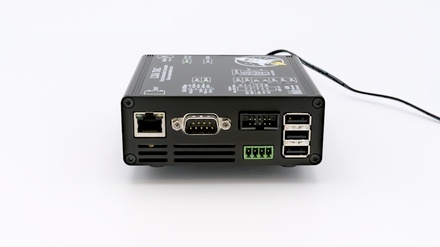

DUT-facing Interfaces

  • Gigabit Ethernet
  • 3x USB 2.0 (power and data switchable per port)
  • Combo-Header (2.54mm for simple usage):
    • UART (3.3V Logik-Level) mit RX, TX, RTS und CTS
    • 3.3V supply for external level shifter
    • UART and power supply switchable
    • 2x potential-free contact for switching of jumpers
  • DUT power supply switch (max 48V, 5A) with voltage and current measurement
  • CAN interface (for connection to DUT)
  • LXA IOBus: For connection of LXA IOBus compatible extension devices

Further information are available on the product page.

Scope of delivery

  • 1x LXA TAC
  • 1x Set of 3 connectors for the power supply of the DUT
  • 1x CAT6 Patchcable

Product Information

Product Type Devices
Price (excl. tax) €449.00
Price (incl. tax) €534.31
Tax (19% VAT) €85.31
Availability In stock
CE Compliant Yes
Country of Origin Germany
HS Code 85437090
Manufacturer Linux Automation
Item Number 00047
