LXA IOBus 4DO-3DI-3AI

€155.89
incl. 19% VAT plus shipping
In stock

Product Description

The LXA IOBus 4DO-3DI-3AI extends an IOBus network by four digital outputs, three digital inputs and three analog inputs.

The digital outputs are implemented using solid state relais and allow the galvanically isolated switching of very small loads. Exemplary use cases are the simulation of button presses or the setting/resetting of jumper connections to trigger a system reset or select boot modes.

The digital inputs are also implemented using solid state relais and can for example be used to provide binary feedback to your test automation system to determine if a test was successful.

The analog inputs are non-isolated and may for example be used to monitor supply voltages. This can for example be used to ensure that the system has returned to a known good state after the previous test run.

Minimal Setup

For a minimal IOBus setup you will need:

  • A Linux-based system to run the IOBus server.
  • A CAN adapter that lets said system talk the CAN protocol.
  • A 120 Ω resistor to terminate the CAN-bus.
  • A 12 V power supply.
  • A 9-wire ribbon cable.
  • Male and female D-Sub 9 connectors to crimp onto the ribbon cable
  • A female D-Sub 9 connector to solder the power supply leads and termination resistor to.
  • A bit of patience to follow the hardware preparation instructions described in our manual .

Further information are available on the product page.

Scope of delivery

This product is delivered as kit

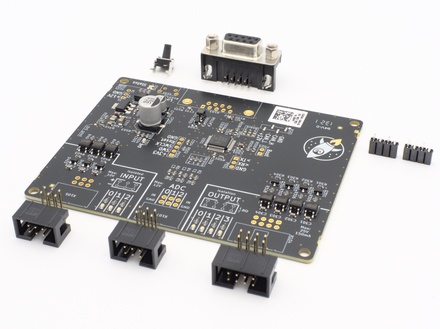

  • 1x PCB with soldered SMD components
  • All needed THT components, consisting of
    • 1x button
    • 1x D-SUB 9, female
    • 2x 2.54 mm 4 PIN Socket
    • 2x skirting and cable housings

Product Information

Product Type Devices
Price (excl. tax) €131.00
Price (incl. tax) €155.89
Tax (19% VAT) €24.89
Availability In stock
CE Compliant Yes
Country of Origin Germany
HS Code 85437090
Manufacturer Linux Automation
Item Number 00005
